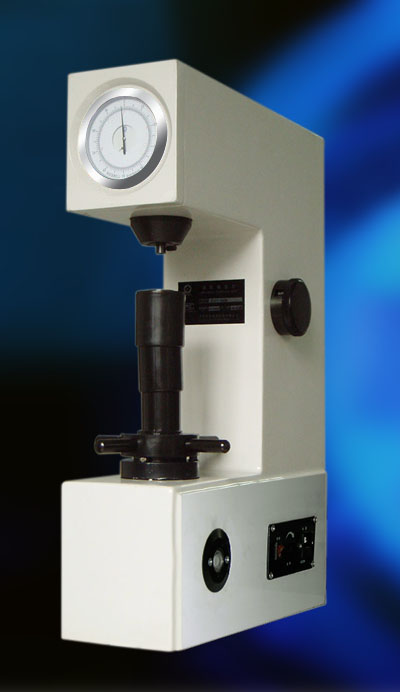

R(D)-45D1電動表面洛氏硬度計
Model R(D)-45D1 Motorized Surferficial Rockwell Hardness Tester
R(D)-45D1型電動表面洛氏硬度計具有性能穩定，結構牢靠、安全，操作方便等特點。采用自動加卸試驗力方法，保荷時間穩定，消除了人為操作誤差，示值精度高。
該硬度計適用硬質合金、滲碳鋼、淬火鋼、硬鑄鐵及軟鋼、鋁合金、銅合金和可鍛鑄鐵的硬度的測定。
This tester is a popular type Rockwell hardness testing machine, the construction is firm and reliable and safe, operating convenience etc. characteristics.The adoption adds to unload automatically to experiment the dint method, protecting time of stable, dissolves artificial operation error margin, show the worth accuracy high.
That degree of hardness accounts to be applicable to the black metals and have the Rockwell surname degree of hardness measurement of the color metals.It is extensive to be applicable to factory car with calculate the section.
主要技術參數Specifications：
初試驗力（N）：29
Preliminary test force:29
總試驗力（N）：147，294，441
Total test force(N):147，294，441
總試驗力保持時間（S）：0-30
Total test force dwell time(s):0-30
試件允許最大高度：170mm
Max height of speciments(mm):170
壓頭中心到機身距離：140mm
Distance from Indenter's center to OuterWall:140mm
硬度計外形尺寸（mm）:463×175×660
Machine Size(DXWXH)(mm): 463 ×175×660
電源電壓：AC220V/50HZ
Power Supply: AC220V/50HZ
硬度計重量（kg）:75
Weight(kg):75
硬度值范圍：
HR15N：70～91
HR30N：42～80
HR45N：20～70
HR15T：73～93
HR30T：43～82
HR45T：12～72
|
