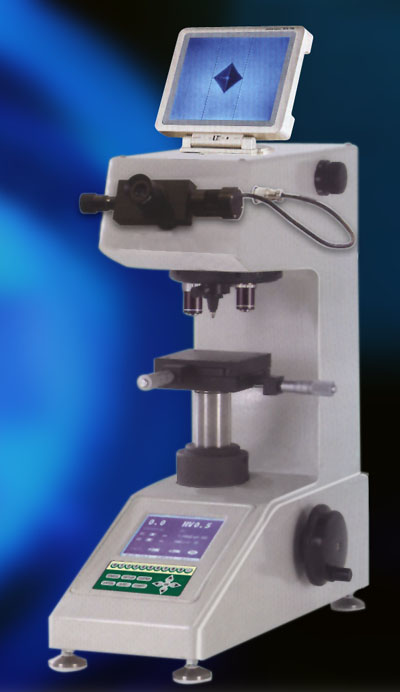

MVCCD-1000帶視頻裝置數顯顯微硬度計
Model MVCCD-1000 Video Digital Micro Hardness Tester
MVCCD-1000型視屏數顯顯微硬度計，是在MVD-1000D1數顯顯微硬度計主機上，加配視頻測量裝置的新一代顯微硬度計。視頻測量裝置，由CCD測量系統、彩色7英寸液晶顯示器等部件組成。配備該裝置后，使原來在硬度計目鏡上顯示的壓痕直接顯示在液晶顯示器上。工作過程更直觀，測量更精確，避免用眼疲勞和長時間測量引起的人為誤差，并能使工作過程多人同時觀察。該機是現代實驗室、試驗室、教學和工廠檢測等理想的硬度計。
Type MVCCD-1000 see to hold the number shows the degree of hardness accounts, ising in D1 number MVD-1000 showing degree of hardness accounting the host, adding that going together with and seeing the new generation measures the device shows minute details the degree of hardness accounts.Seeing the measures the device, being measured by CCD system, color 7 inches of liquid crystal displays etc. parts constitute.The equipment shoulds be made after equiping to show in degree of hardness accounting eyes originally of press the to show at the liquid crystal display the top directly.The work process even keeps the view, measuring more accurate, avoid using eye fatigue with artificial error margin that long-playing diagraph cause, combining can make work process many the person observes at the same time.That machine is a degree of hardness that modern laboratory, laboratory, teaching examine the etc. ideal with the factory to account.
|
|
技術規格
顯微維氏標尺HV0.01, HV0.025, HV0.05, HV0.1, HV0.3,
HV0.5, HV1
轉換標尺洛氏、布氏
顯示5位數的硬度值，4位數的對角線長度(D1,D2)，GO/NG設定值，
試驗力，保持時間，測試次數，平均值、標準偏差，回歸
試驗力10-25-50-100-200-300-500-1000gf
精度符合EN-ISO 6507
加卸載控制全自動(加載/保持/卸載)試驗力保持時間5 ~ 60秒(1秒為增量)
試驗力選擇外置式選力手輪
物鏡放大倍數10×，40×
測量目鏡自動數字式編碼器 總放大倍數100×(觀察)，400×(測量)
測量范圍200μm 分辨率0.01μm
XY試臺
尺寸100×100mm
行程范圍25×25mm
最小讀數0.01mm
試件
最大高度85mm
最大寬度 120mm(從壓頭中心線起至機壁距離)
輸出內置打印機(硬度值和統計數據)，RS232串行接口
電源110-220V 50Hz
尺寸490×185×515mm
重量35kg |
