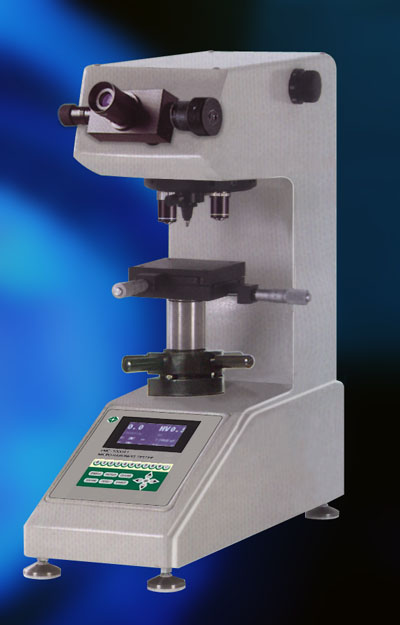

MVC-1000A1顯微硬度計（手動轉塔）
Model MVC-1000A1 Micro Hardness Tester
MVC-1000A1型數顯顯微硬度計造型新穎、美觀，而且它具有良好的可靠性，可操作性和直觀性。內置硬度計算器，可通過輸入壓痕對角線長度，直接在LCD屏幕上顯示硬度值。
該機采用高倍率光學測量系統(tǒng)，目鏡鼓輪一次讀數。可測定鋼、有色金屬、IC薄片、薄塑料、金屬薄片、涂層、表面覆層、層壓金屬、熱處理碳化層和淬火硬化層的深度與硬度梯度。
The A1 MVC-1000 type counts to show the degree of hardness accounts the shape novel and beautiful, and it have the good and dependable, maneuverability with keep the view.The inside places the degree of hardness calculator, can pass the importation press the diagonal line length, direct the manifestation degree of hardness is worth in LCD holding the act.
That machine adopts the high magnification optics the diagraph the system, the eyes drum round is a to read the number.Can measurese the steel, have the color metals, the thin slice of IC, thin plastics, metals thin slice and draw the layer, surface layer, layer press the metals, heat handles the carbonization layer hardens the depth of the layer with the fire of and degree of hardness steps degree.
顯微硬度標尺HV0.01, HV0.025, HV0.05, HV0.1, HV0.3,
HV0.5, HV1
顯示保持時間(秒)，硬度值
試驗力10 - 25 - 50 - 100 - 200 - 300 - 500 - 1000gf
精度符合EN-ISO 6507
加載控制自動(加載/保持/卸載)
試驗力保持時間5 ~ 60秒(5秒為增量)
試驗力選擇外置式選力旋鈕，試驗力顯示在LCD屏上物鏡10×，40× 目鏡放大倍數10×
總放大倍數100×(觀察)，400×(測量)
測量范圍200μm
分辨率0.5μm
XY試臺
尺寸
100 x 100mm
行程范圍 25 x 25mm
分辨率0.01mm(微分頭)
試件
最大高度85mm
最大寬度120mm(從壓頭中心線至機壁距離)
電源110-220V 50Hz
尺寸490×185×515mm
重量 35kg
|
